รายละเอียดสินค้า:
|
| ขนาด: | L2500x W650x H1400 | ปริมาณโซนทำความร้อน: | ข้างบน4/ด้านล่าง4 |
|---|---|---|---|
| พื้นที่ทำความร้อน: | 1400*300มม | เวลาร้อนขึ้น: | ประมาณ 20 นาที |
| น้ำหนักสุทธิ: | 220 กิโลกรัม | วิธีการจัดส่ง: | การถ่ายโอนตาข่าย |
| เน้น: | 220kg Net Weight SMT Reflow Oven,20 mins Heating Up Time Hot Air Soldering Machine,380V Power Supply PCB Assembly Machine |
||

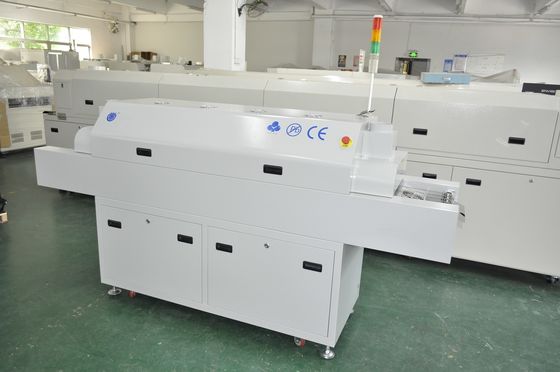

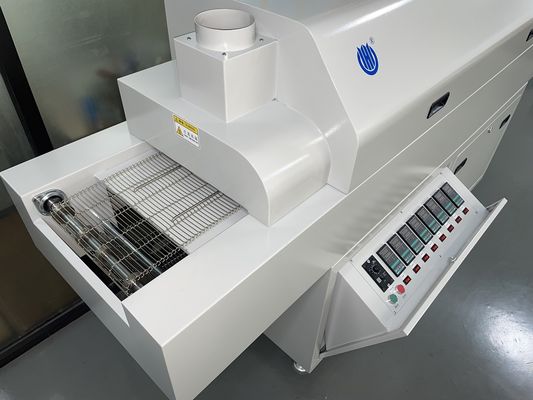

Vertical SMT Reflow Oven 8 Temperature Zones 1400*300mm Hot air Soldering Machine - Lead-free

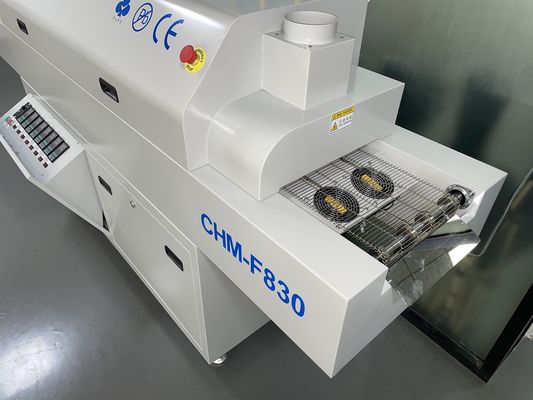

| Model No. | CHM-F830 |
|---|---|
| Number of Heating Zones | Up 4 + Bottom 4 |
| Length of Heating Zones | 1400mm |
| Heating Pattern | Up: Hot air; Bottom: Hot air (Forced convection of hot air, Taiwan SAYA motor) |
| Number of Cooling Zones | 2 Plasma DC Fan |

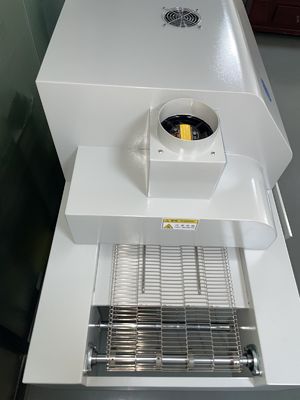

| Max. Width Of PCB | 300mm (stainless steel mesh belt) |
| Conveyor Direction | L->R |
| Conveyor Height | 880±20mm |
| Transport Mode | Mesh Belt |
| Conveyor Speed Range | 0-2200mm/min |
| Power Supply | 5 Wire, 3 Phase, 380V 50/60Hz |
| Start Power | 10KW |
| Power Consumption | Approx 2.5KW |
| Warming Time | Approx 15-20 mins |
| Temp. Setting Range | Room Temp.- 380℃ |
| Temperature Control Method | Instrument-controlled |
| Temperature Difference Between Adjacent Zone | 70 ℃, can correspond to the highest standards of lead-free process. |
| Temperature Control Precision | ±2℃ |
| Temperature Deviation on PCB | ±2℃ |
| Abnormal Alarm | Temperature abnormal (too high or too low after the constant temperature keeping) |
| Open Way | Manual |
| Dimension(L*W*H)mm | 2500*650*1400MM |
| Weight | Approx220Kg |
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory reliable direct supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service. Each machine 100% tested well before ship out.
